IP66 waterproof wireless TTLock Remote Control Smart Door Lock Standalone Keypad RFID Tuya WIFI Access Reader Door Bell

Place of Origin	SHANGHAI,CHINA
Brand Name	VANSHUI
Certification	CE,FCC
Model Number	GL-AC07
Minimum Order Quantity	1pcs
Price	Negotiation
Packaging Details	Unit Pacakge:15.67.66.6cm,G.W.:0.615kg Carton Package:473018.2cm,G.W.12.5kg,20units/CTN
Delivery Time	sample order within 3-4days.
Payment Terms	T/T, Western Union,Paypal
Supply Ability	1000Pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details

Product Name	Biometric Smart Access Control Reader	User Capacity	1000 Users (988 Common Users + 2 Panic Users +10 Visitor Users)
Operating Voltage	12~28V AC/DC	Proximity Card Reader	125KHz(ID Carfd) Or 13.56MHz(IC Card)
Wiring Connections	Relay Output, Exit Button, Alarm, Door Contact, Wiegand Input/output	Adjustable Relay Output Time	0~99 Seconds (5 Seconds Default)
Operating Temperature	-40°C ~ 60°C	Recognition Type	APP+Passord+RFID Card
Highlight	access control proximity reader , card reader access control systems

Leave a Message

Product Description

PRODUCT DESCRIPTION


IP66 Waterproof Wireless TTLOCK Remote Control 
Smart Door Lock Standalone Keypad
RFID TUYA WIFI Access Control Reader
with Door Bell

FEATURES

Outdoor Touch Keypad & Reader
1/Metal housing,anti-vandal,waterproof,conforms to IP66

2/Card type:EM Card or IC Card

3/lOS and Android available

4/Add/Delete users by APP

5/Support checking Opening Record

6/Multiple Access Modes:Smartphone,Card,PIN

7/Support Gateway(Bluetooth)

8/Can set Time Restriction for users(WiFi)

9/Temporary Password (One-time Or Period Code)(WiFi)

10/Remotely Access(Support 3G/4G/5G)(WiFi)

11/Doorbell Call Notice(WiFi)

SPECIFICATION

Model	GL-AC07
User Capacity	TUYA WIFI: Hardware User:1,000,APP User:500; TTLOCK BT:Hardware User:1,000,APP User:100(including 255 card/PIN users); Common User:988 (PIN/Card Users),Visitor User:10, Panic User:2
APP option	Tuya (WIFI or BT) or TTLock APP
PIN Length	4~6 digits
Operating Voltage	12~28V AC/DC
Idle Current	≤ 60mA
Active Current	≤ 150mA
Proximity Card Reader	EM or IC
Radio Technology	125KHz or 13.56MHz
Read Range	2~6cm One

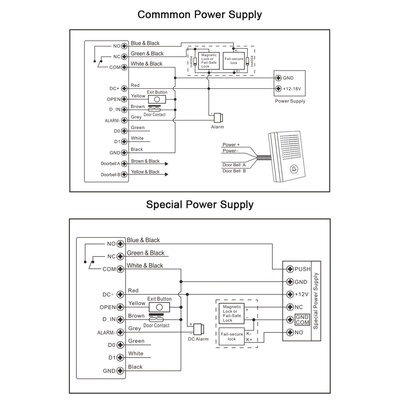

Wiring Connections	Relay output, exit button, alarm, door contact, Wiegand input/output
Relay	One (NO, NC, Common)
Adjustable Relay Output Time	0~99 Seconds (5 seconds default)
Lock Output Load	2 Amp Maximum
Wiegand Interface	EM card version: Wiegand 26~44 bits input & output (Factory default: Wiegand 26bits) Mifare card version:Wiegand 26~44 bits,56bits,58bits input & output (Factory default: Wiegand 34bits)
PIN Output	4 bits,8bits (ASCII),10 digits Virtual Number(Factory default:4bits)
Environment	IP66
Operating Temperature	30°℃～60℃ (-22°F～140°F)
Operating Humidity	0%RH ~ 98%RH
Physical	Zinc-Alloy
Color	Sliver
Dimensions	L165x W44 x H22 (mm)
Weight	Unit Weight:1KG;Shipping Weight:1.5KG
