Biometric Fingerprint Access Control with Tuya APP IP68 Waterproof Keypad Touch Screen RFID Card Reader with TTLCOK APP

Place of Origin	SHANGHAI,CHINA
Brand Name	VANSHUI
Certification	CE,FCC
Model Number	GL-AC06
Minimum Order Quantity	1pcs
Price	Negotiation
Packaging Details	Unit Pacakge:15.67.66.6cm,G.W.:0.615kg Carton Package:473018.2cm,G.W.12.5kg,20units/CTN
Delivery Time	sample order within 3-4days.
Payment Terms	T/T, Western Union,Paypal
Supply Ability	1000Pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details

Product Name	Biometric Smart Access Control Reader	Type	Fingerprint+APP+Passord+RFID Card
User Capacity	1000 Users (988 Common Users + 2 Panic Users +10 Visitor Users)	Waterproof Rank	IP66
PIN Length	4~6 Digits	Operating Voltage	12~28V AC/DC
Proximity Card Reader	125KHz(ID Carfd) Or 13.56MHz(IC Card)	Wiring Connections	Relay Output, Exit Button, Alarm, Door Contact, Wiegand Input/output
Relay	One (NO, NC, Common)	Operating Temperature	-30°C ~ 60°C
Highlight	ultra high frequency rfid reader , long range uhf rfid reader

Leave a Message

Product Description

PRODUCT DESCRIPTION


Biometric Fingerprint Access Control with Tuya APP WiFi
IP68 Waterproof Keypad Touch Screen
RFID Card Access Control Reader with TTLock App

FEATURES

Outdoor Touch Keypad & Reader

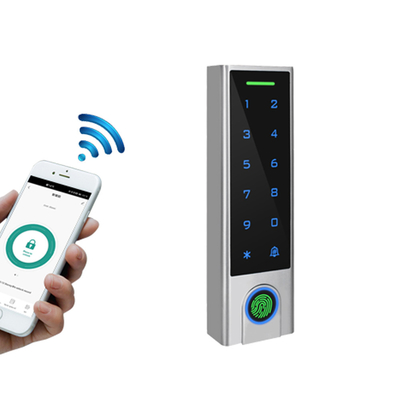

1>Compatible with all BT/Wi-Fi enable mobile phones (Android:4.3 above,iOS:7.0 above)

2>Integratedwith Tuya which supports 500 mobile users and 1000 local users

3>TTLOCK APP support to add /Delete PIN /Card user and send eKeys

4>Available for both iOS and Android,supporting multiple languages

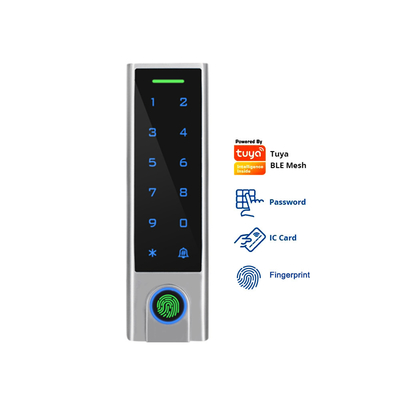

5>Multiple access modes:APP,Card,Password

6>Metal housing,anti-vandal,Waterproof

7>Support checking Opening Record

8>Support Gateway

9>Support Time Attendance

SPECIFICATION

Model	GL-AC06
User Capacity	Hardware User:1,000,APP User:500, Common User:988 (100 Fingerprint Users+888 PIN/Card Users),Visitor User:10,Panic User:2
APP option	Tuya (WIFI or BT) or TTLock APP
PIN Length	4~6 digits
Operating Voltage	12~28V AC/DC
Idle Current	≤ 60mA
Active Current	≤ 150mA
Proximity Card Reader	EM or Mifare
Radio Technology	125KHz or 13.56MHz
Read Range	2~6cm
Wiring Connections	Relay output, exit button, alarm, door contact, Wiegand input/output
Relay	One (NO, NC, Common)
Adjustable Relay Output Time	0~99 Seconds (5 seconds default)
Lock Output Load	2 Amp Maximum
Wiegand Interface	EM card version: Wiegand 26~44 bits input & output (Factory default: Wiegand 26bits) Mifare card version:Wiegand 26~44 bits,56bits,58bits input & output (Factory default: Wiegand 34bits)
PIN Output	4 bits,8bits (ASCII),10 digits Virtual Number(Factory default:4bits)
Environment	IP66
Operating Temperature	30°℃～60℃ (-22°F～140°F)
Operating Humidity	0%RH ~ 98%RH
Physical	Zinc-Alloy
Color	Sliver & Black

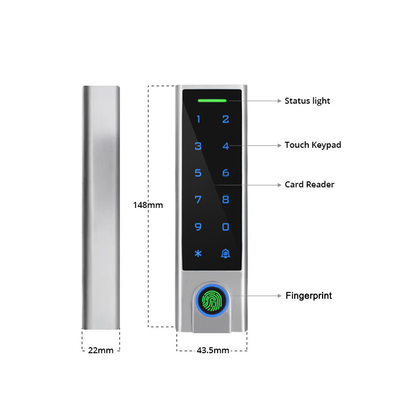

Dimensions	L148x W43.5 x H22 (mm)
Weight	Unit Weight:1KG;Shipping Weight:1.5KG
