Outdoor Waterproof IP68 and Anti-vandal RFID Card Access Control Reader with Metal Cover

Place of Origin	SHANGHAI,CHINA
Brand Name	VANSHUI
Certification	CE,FCC
Model Number	U8
Minimum Order Quantity	1
Price	USD22-USD25
Packaging Details	Package Weight:1kg Package Size:30cm x 20cm x 8cm
Delivery Time	sample order within 3-4days.
Payment Terms	L/C, T/T, Western Union,Paypal
Supply Ability	1000Pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details

User Capacity	2000	Environment	IP68
Unlock Mode	Card, PIN, Card+PIN	Door Relay Time	0~99 Seconds
Alarm Time	0~3 Minutes	Wiegand Format	Wiegand26/34 Input & Output
Wiring Connections	Electric Lock, Exit Button, Alarm, Doorbell, Door Sensor	Reading Distance	3-6cm
Operating Voltage	12-24VDC	Dimensions	1355822mm
Highlight	anti theft digital access keypad rfid , 12v 1a digital access keypad , keyless rfid keypad

Leave a Message

Product Description

Outdoor Waterproof IP68 and Anti-vandal RFID Card Access Control Reader with Metal Cover

PRODUCT DESCRIPTION

Model U8: Waterproof IP68 and Anti-vandal PIN Code+RFID Card Access Control Reader

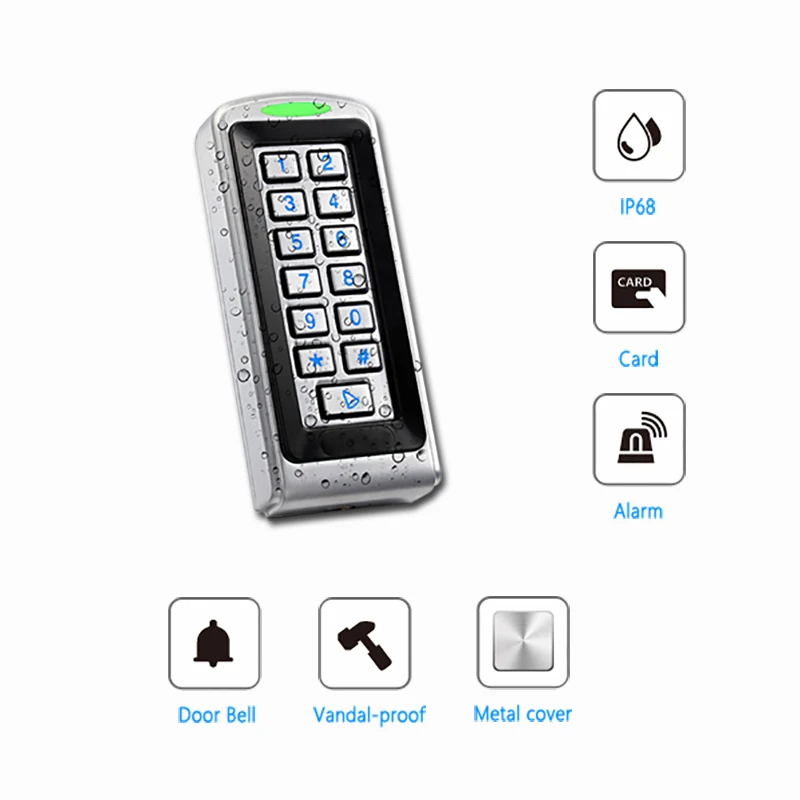

FEATURES

1/ Unlock mode: Card, PIN, Card+PIN.

2/ Built-in 125KHz EM card reader, 13.56MHz MF card function is optional.

3/ Anti-vandal, waterproof & Back-lit metal key buttons.

4/ Audible beep and visible indicator provide feedback for the user.

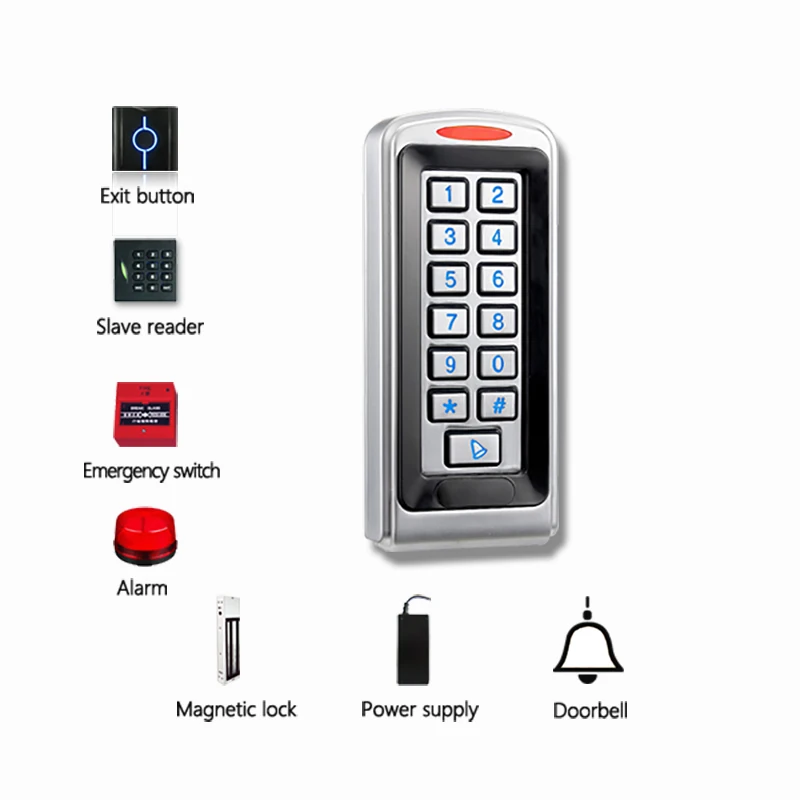

5/ Access control interfaces for electric lock, door sensor, alarm, exit button and door bell.

6/ Lock control delay, Unlock duration, Alarm delay are programmable from 0 to 254 seconds.

7/ Support tamper alarm, door sensor alarm, error operation alarm.

8/ Slim, elegant and rugged design.

9/ With wiegand input and output signal.

SPECIFICATION

Model	U8
Operating Voltage	12-24VDC	Operate Humidity	5%-95%RH
User Capacity	2000	Environment	Conforms to IP68
Keypad	White backlit, Numeric keys 0-9, function keys *, #,Bell	Wiring Connections	Electric Lock, Exit Button, Alarm, Doorbell, Door sensor
Verification Type	Card, PIN, Card+PIN	Alarm Time	0~3 minutes
Reading Distance	3-6cm	Wiegand format	Wiegand26/34 input & output
Active Current	<80mA	Door Relay Time	0~99 seconds
Idle Current	<40mA	Dimensions	1355822mm
Lock Output load	Max2A	Net Weight	550g
