Large Capacity ID Card Reader 125KHz and Face/Fingerprint/Palm Time Attendance and Access Control System

Place of Origin	SHANGHAI,CHINA
Brand Name	VANSHUI
Certification	CE,FCC
Model Number	FA1-PRO
Minimum Order Quantity	1pcs
Price	Negotiation
Packaging Details	Machine Size:194(L)165(W)86(H)mm Unit packing: 312612cm; Carton packing: 553438cm Real weight: 2kg; Volume weight: 2.5kg
Delivery Time	sample order within 1-2 working days
Payment Terms	T/T, Western Union,Paypal
Supply Ability	1000Pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details

Model	FA1-H	LCD Display	4.3" TFT Touch Screen
Capacity	Face:12,000;Fingerprint:20,000;Palm:6,000; Card:20,000(optional);Logs:200,000	Speaker	Voice Prompt
Algorithms	Face V12.0 & Finger V10.0&Palm V12.0	Language	More Than 40 Languages Can Be Selected
Communication	TCP/IP, RS232/485, USB Host, Wiegand Out	Power Supply	110/220VAC ~ 12VDC
Li-battery	Holding 3-4 Hours	Access Control	Built-in Relay, EM Lock, Door Sensor, Exit Button, Etc.
Attendance Status	Check In/out, Break In/out, Over Time In/out	Volume Weight	2.5kg
Highlight	stand alone proximity card reader , wireless proximity card reader

Leave a Message

Product Description

Large Capacity ID Card Reader 125KHz and Face/Fingerprint/Palm

Time Attendance and Access Control System

Products Description

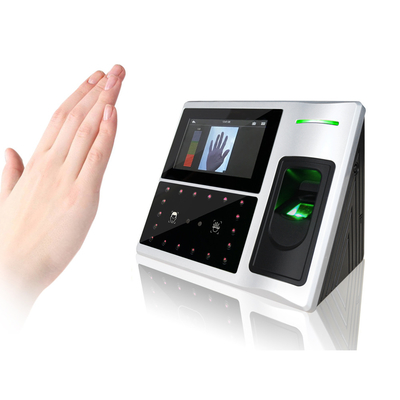

FA1-PRO is powered by Computer Vision technology like 3-in-1 contactless palm recognition, which means the terminal can perform bio-authentication with a user's palm vein, palm print, and the shape of palm at the same time once the sensor detects a hand presented.

Palm vein and palm print patterns are reliable human identifiers as the details are extremely hard to be duplicated,thus, together with the powerful algorithm, users may enjoy the terminal's enhanced anti-spoofing ability.Eliminating hygienic concerns, FA1-PRO, equipped with a novel hand tracking technique allowing angle tolerances wide as +/-60°in the roll axis, the huge capacity of 6,000 palm templates, and a 1.4GHz quad-core CPU, extracts palm print and vein pattern for analysis at a distance for recognition from 0.2m to 0.5m in less than 0.35s. Users no longer need to struggle to touch the sensor at a specific angle and align the center of the palm with the center of the input sensor for proper hand images to be acquired.

Features

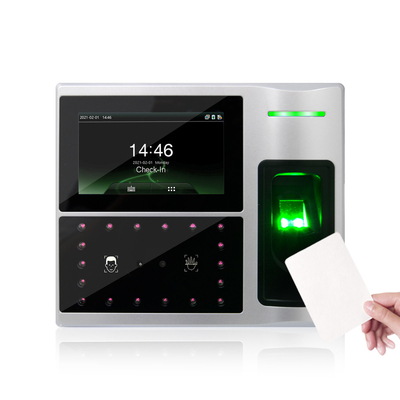

1/ Multi-Biometric verification mode: Palm/face/fingerprint and Card (Optional)

2/ 6,000 palms, 12,000 faces, 20,000 fingerprints and 20,000cards(optional)

3/ Time attendance application, also with built-in relay for access control function

4/ Able to detect whether the face is an actual face or a photo, enhancing the security level of verification

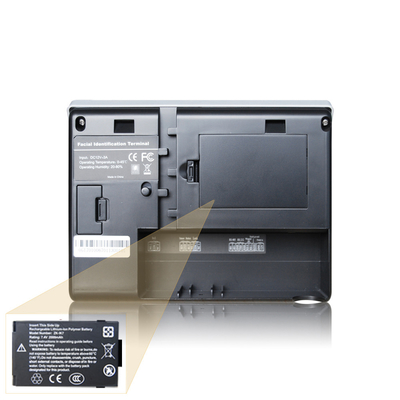

5/ Backup battery provides approximate 3 hours of continuous operation

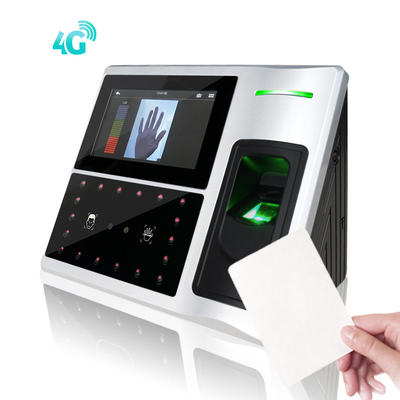

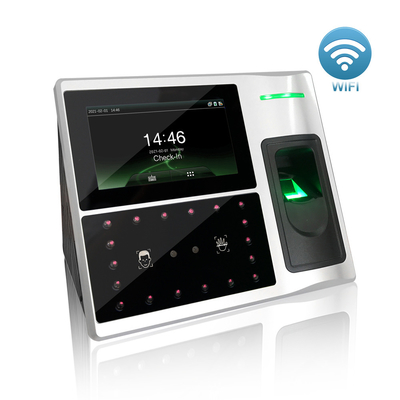

6/ Communication via TCP/IP, RS232/485 and USB, WiFi or 4G is optional

7/ Support 1.4GHz Quad Core CPU, Rapid recognition speed

Specification

Model	FA1-PRO
Cameras	High Definition Infrared Cameras
Display	4.3"TFT Touch Screen
Speaker	Voice Prompt
Capacity	Face:12,000;Fingerprint:20,000;Palm:6,000; Card:20,000(optional);Logs:200,000
Algorithms	Face v12.0 & Finger v10.0&Palm V12.0
CPU	1.4GHz Quad Core CPU,Memory 1G RAM/1G Flash
Verification	Verification speed (1:1)≤0.5S;identification speed (1:N)≤1S
Identification	Fingerprint:FAR≤0.0001%;FRR≤0.01%; Face:FAR≤0.001%;FRR≤1% Palm:FAR≤0.01%;FRR≤1%
Communication	TCP/IP, USB Host, RS232/485, Wiegand output
Attendance status	Check in/out, Break in/out, Overtime in/out
Interfaces for	3rd Party electric lock, Door sensor, Exit button, Alarm
Language	Multi Language, English, French, Spanish, Arabic, Turkish, Portuguese, Hebrew etc
Power Supply	110/220 VAC-12VDC/3A
Environment	Operation temperature/0°℃-45℃; Operation humidity/ 20%-80%

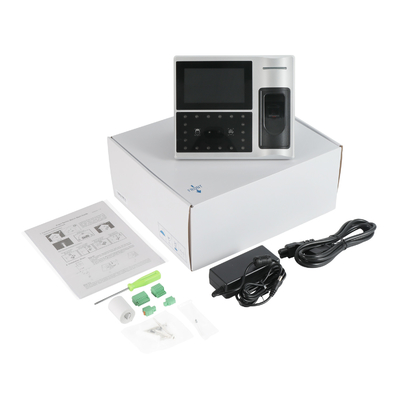

Package data	Machine size:19.4(L)16.5(W)86(H)mm; Unit packing:312612cm; Carton packing:503438cm; Real weight:1.65kg; Volume weight:2.1kg
Function support	Scheduled bell, DLST, Self-inquiry, Workcode, SMS, T9 input, Webserver, Multi-alarm,Photo ID, User role, Data encryption, ADMS,Multi-verify, Auto state
Optional Function	ID/ Mifare card reader, WIFl, 4G, Serial printer, External siren
